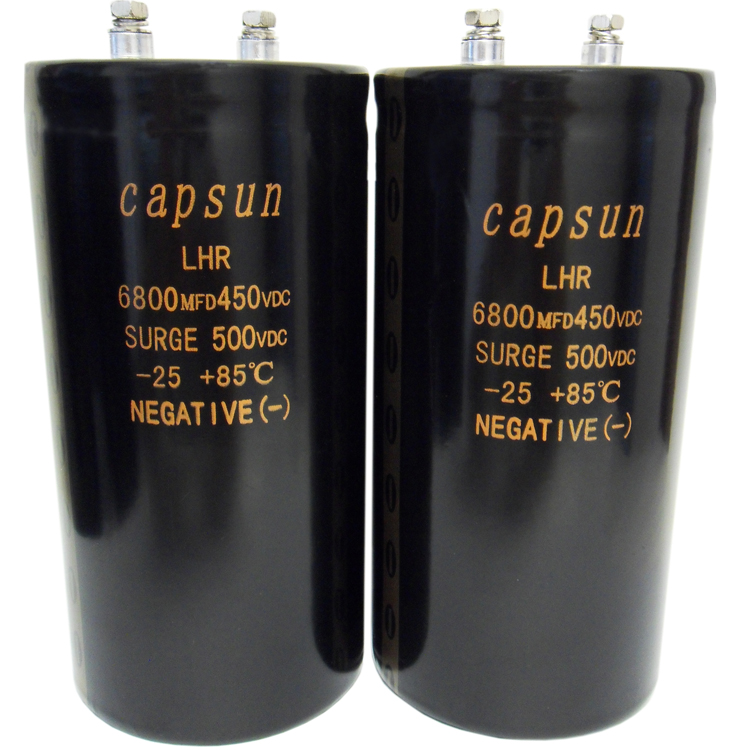

LHR 系列

項目

特性

工作(zuo)溫度范圍

-40~+85℃

額(e)定電壓(ya)范圍(wei)

350~450VDC

靜電容量(liang)容許(xu)差

±; 20%（M）----------------- 20℃/120HZ

漏電流

I=0.02CV或者5mA中任意一個(ge)較小值

I:漏電(dian)流（µA）、C:靜電(dian)容量（µF）、額定(ding)電(dian)壓（VDC）-------- 20℃/5分鐘值

損失(shi)角正切值(zhi)tanδ

≤0.25 ----------------20℃/120HZ

溫度特(te)性(xing)

靜(jing)電容量變化率 C（-25℃）/C（+20℃）≥0.7 ------------- 20℃/120HZ

絕緣電阻(zu)

全部端子和容器套上的絕緣套且安裝的固定(ding)帶之間用DC500V的絕緣電阻測(ce)定(ding)儀測(ce)出(chu)的值(zhi)≥100MΩ

絕緣耐壓

全部端子和容器套(tao)的(de)絕緣套(tao)且安(an)裝(zhuang)的(de)固定帶之(zhi)間(jian)施加AC2000V的(de)電(dian)壓1分(fen)鐘未出(chu)現異常。

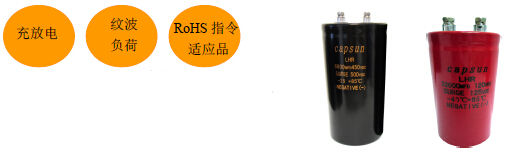

充放電

在(zai)常(chang)溫（15～35℃）的環(huan)境中，用以下電(dian)壓波(bo)形進行充放電(dian)后，待溫度恢復到20℃進行測量(liang)時，

應懣(men)足(zu)以(yi)下要求。

靜(jing)電容量變化率

≤初(chu)始(shi)值的(de)±20%

電壓波(bo)形

損失角(jiao)正切值

≤初始(shi)規格值(zhi)的200%

漏電流(liu)

≤初始規格值(zhi)

頻率

3HZ

周期數(shu)

6.000萬次

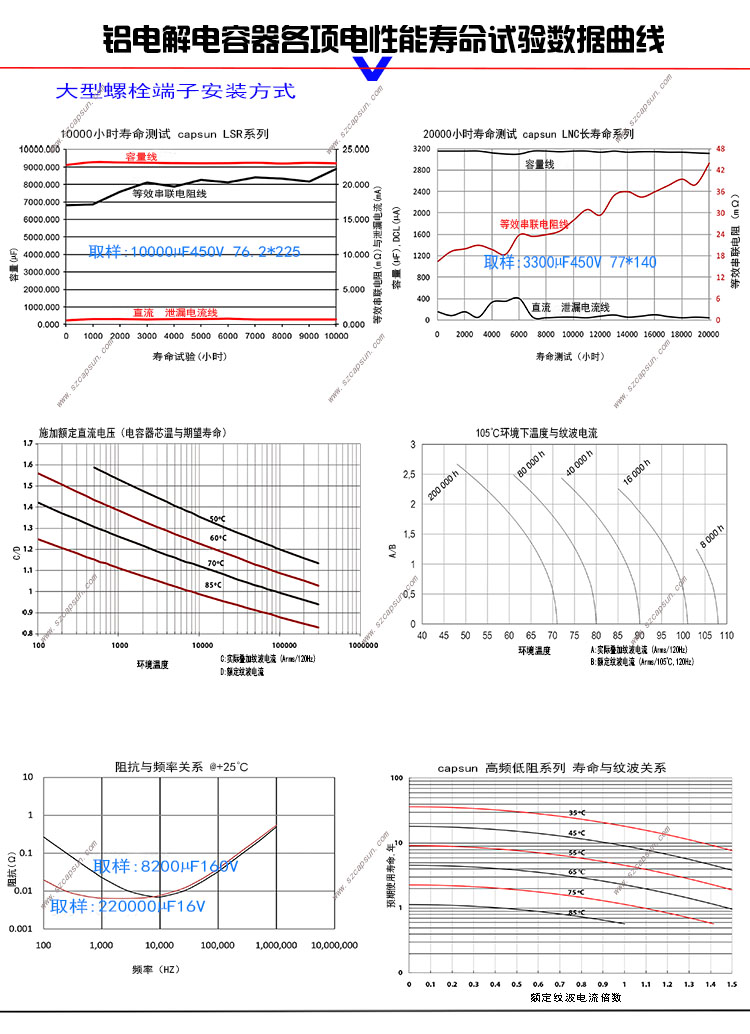

耐久(jiu)性(xing)

在85℃環(huan)境下，不超(chao)過額(e)定電壓的范圍下疊加(jia)額(e)定紋(wen)波電流，連(lian)續加(jia)載額(e)定電壓5000小時后，

待(dai)溫(wen)度恢復到

20℃進行測量時(shi)，應滿足以(yi)下(xia)要求。

靜電容量變化率

≤初(chu)始值的±20%

損(sun)失(shi)角正切值

≤初始規格值(zhi)的200%

漏(lou)電流

≤初始規格值

高溫無(wu)負荷特性(xing)

在85℃環(huan)境下，無負荷放置(zhi)500小時后待溫度恢復到20℃，進行(xing)試(shi)驗前(qian)處理（JIS C 5101-4 4.1項）

后進行測量(liang)時，應滿足以下(xia)要(yao)求

靜電容量變化(hua)率

≤初(chu)始(shi)值的±20%

損失角正切值(zhi)

≤初始規格值的200%

漏電(dian)流

≤初始(shi)規(gui)格值

工作電壓

額定容量

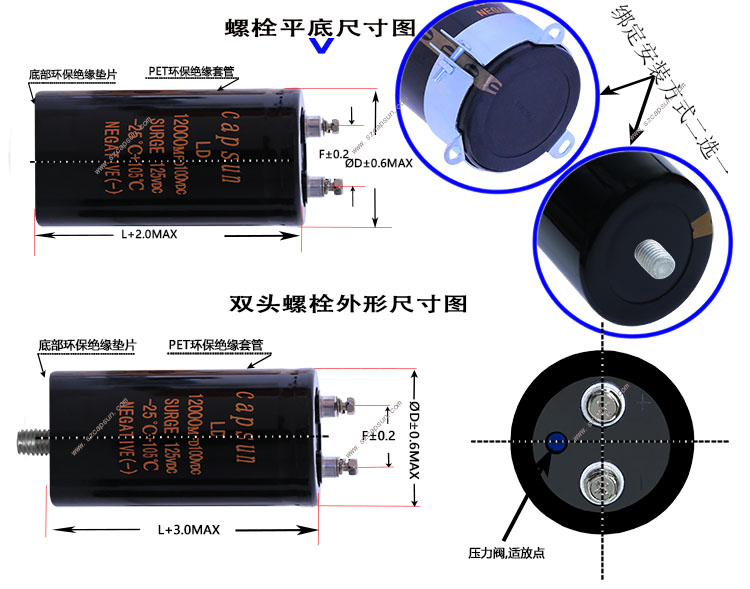

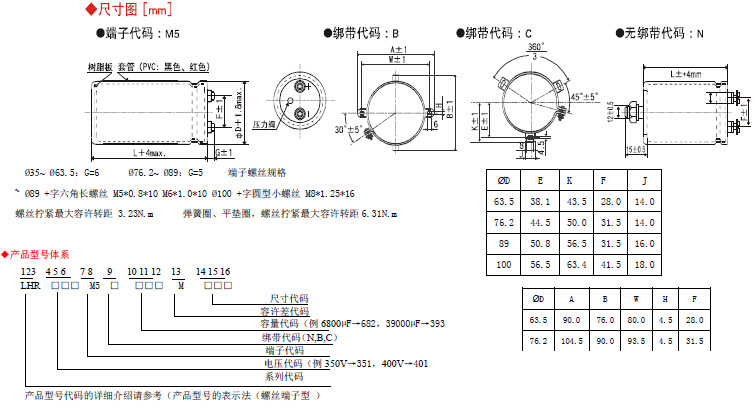

外(wai)殼尺寸D x L

損(sun)耗角120Hz,20℃

額定紋波電(dian)流

[V]

[μF]

[mm]

（Ams/85℃,120Hz）

1200

50*60

4.7

1.56

LHR351M5C122MC60

1500

50*70

5.5

1.83

LHR351M5C152MC70

1800

50*80

6.4

2.13

LHR351M5C182MC80

2200

50*96

7.6

2.53

LHR351M5C222MC96

2700

50*105

8.8

2.94

LHR351M5C272MCA5

2700

50*115

9.2

3.06

LHR351M5C272MCB5

3300

50*130

10.8

3.58

LHR351M5C332MCD0

4700

63.5*115

13.2

4.61

LHR351M5C472MDB5

5600

63.5*130

15.2

5.3

LHR351M5C562MDD0

5600

76.2*105

15.2

5.36

LHR351M5C562MEA5

6800

63.5*155

18.1

6.32

LHR351M5C682MDF5

8200

63.5*170

20.7

7.25

LHR351M5C822MDH0

8200

76.2*130

20.2

6.57

LHR351M5C822MED0

10000

76.2*155

24.2

8.47

LDX351M5C103MEF5

10000

89*115

23.1

8.1

LHR351M5C103MFB5

12000

76.2*170

27.6

9.66

LHR351M5C123MEH0

12000

89*130

26.6

9.33

LHR351M5C123MFD0

15000

89*155

32.1

11.2

LHR351M5C153MFF5

15000

89*170

33.5

11.7

LHR351M5C153MFH0

18000

89*190

38.5

13.5

LHR351M5C183MFK0

1000

50*60

4.3

1.42

LHR3H1M5C102MC60

1200

50*70

4.9

1.64

LHR3H1M5C122MC70

1500

50*80

5.8

1.94

LHR3H1M5C152MC80

2200

50*96

7.6

2.54

LHR3H1M5C222MC96

2200

50*105

8

2.65

LHR3H1M5C222MCA5

2700

50*115

9.2

3.06

LHR3H1M5C272MCB5

3300

50*130

10.8

3.58

LHR3H1M5C332MCD0

4700

63.5*115

13.2

4.61

LHR3H1M5C472MDB5

5600

63.5*130

15.2

5.3

LHR3H1M5C562MDD0

5600

76.2*105

15.2

5.36

LHR3H1M5C562MEA5

6800

63.5*155

18.1

6.32

LHR3H1M5C682MDF5

6800

63.5*170

18.9

6.6

LHR3H1M5C682MDH0

8200

76.2*130

20.2

7.09

LHR3H1M5C822MED0

8200

89*115

20.9

7.35

LHR3H1M5C822MFB5

10000

76.2*155

24.2

8.48

LHR3H1M5C103MEF5

10000

76.2*170

25.2

8.85

LHR3H1M5C103MEH0

10000

89*130

24.3

8.54

LHR3H1M5C103MFD0

12000

89*155

28.4

10

LHR3H1M5C123MFF5

15000

89*170

33.5

11.7

LHR3H1M5C153MFH0

15000

89*190

35.2

12.3

LHR3H1M5C153MFK0

680

50*60

3.1

1.03

LHR451M5C681MC60

820

50*60

3.8

1.29

LHR451M5C821MC60

1000

50*70

4.4

1.5

LHR451M5C102MC70

1200

50*80

5.2

1.74

LHR451M5C122MC80

1500

50*96

6.2

2.1

LHR451M5C152MC96

1800

50*115

7.4

2.51

LHR451M5C182MCB5

2200

50*130

8.7

2.93

LHR451M5C222MCD0

3300

63.5*115

11

3.88

LHR451M5C332MDB5

3900

63.5*130

12.7

4.44

LHR451M5C392MDD0

3900

76.2*105

13.2

4.49

LHR451M5C392MEA5

1000

50*60

4.3

1.42

LHR401M5C102MC60

1200

50*70

4.9

1.64

LHR401M5C122MC70

1500

50*80

5.8

1.95

LHR401M5C152MC80

1800

50*96

6.9

2.29

LHR401M5C182MC96

2200

50*105

8

2.65

LHR401M5C222MCA5

2200

50*115

8.3

2.77

LHR401M5C222MCB5

2700

50*130

9.8

3.23

LHR401M5C272MCD0

3900

63.5*115

12

4.21

LHR401M5C392MDB5

4700

63.5*130

13.9

4.86

LHR401M5C472MDD0

5600

63.5*155

16.4

5.75

LHR401M5C562MDF5

5600

63.5*170

17.1

5.99

LHR401M5C562MDH0

5600

76.2*105

15.2

5.35

LHR401M5C562MEA5

6800

76.2*130

18.4

6.47

LHR401M5C682MED0

8200

76.2*155

21.9

7.68

LHR401M5C822MEF5

8200

76.2*170

22.8

8.02

LHR401M5C822MEH0

8200

89*115

20.9

7.35

LHR401M5C822MFB5

10000

89*130

24.3

8.26

LHR401M5C103MFD0

12000

89*155

28.7

10

LHR401M5C123MFF5

12000

89*170

29.9

10.5

LHR401M5C123MFH0

15000

89*190

31.2

12.3

LHR401M5C153MFK0

820

50*60

3.8

1.29

LHR421M5C821MC60

1000

50*70

4.4

1.5

LHR421M5C102MC70

1200

50*80

5.2

1.75

LHR421M5C122MC80

1800

50*96

6.8

2.3

LHR421M5C182MC96

1800

50*105

7.1

2.4

LHR421M5C182MCA5

2200

50*115

8.2

2.77

LHR421M5C222MCB5

2700

50*130

9.6

3.25

LHR421M5C272MCD0

3300

63.5*115

11

3.87

LHR421M5C332MDB5

3900

63.5*130

12.7

4.44

LHR421M5C392MDD0

4700

63.5*155

15

5.28

LHR421M5C472MDF5

4700

76.2*105

13.9

4.92

LHR421M5C472MEA5

5600

63.5*170

17.1

6.02

LHR421M5C562MDH0

5600

76.2*130

16.6

5.9

LHR421M5C562MED0

6800

76.2*155

19.8

7.02

LHR421M5C682MEF5

6800

89*115

19

6.73

LHR421M5C682MFB5

8200

76.2*170

22.7

8.04

LHR421M5C822MEH0

8200

89*130

22

7.78

LHR421M5C822MFD0

10000

89*155

26.2

9.24

LHR421M5C103MFF5

12000

89*170

29.9

10.5

LHR421M5C123MFH0

12000

89*190

31.5

11

LHR421M5C123MFK0

4700

63.5*155

15

5.27

LHR451M5C472MDF5

4700

63.5*170

15.6

5.5

LHR451M5C472MDH0

5600

76.2*130

16.6

5.88

LHR451M5C562MED0

6800

76.2*155

19.8

7.04

LHR451M5C682MEF5

6800

89*115

19

6.72

LHR451M5C682MFB5

8200

76.2*170

22.7

7.97

LHR451M5C822MEH0

8200

89*130

22

7.72

LHR451M5C822MFD0

10000

89*155

26.2

9.22

LHR451M5C103MFF5

10000

89*170

27.3

9.66

LHR451M5C103MFH0

12000

89*190

31.5

11.1

LHR451M5C123MFK0

頻(pin)率（HZ）

50

120

300

1K

3K

修正(zheng)系(xi)數

0.8

1.0

1.1

1.3

1.4
